PoE+ IEEE 802.3at TYPE 2 (30W) MAGJACKS

Extensive range of highly competitive, quality PCB mount PoE+ (Power over Ethernet) RJ45 Magnetic Jacks (MagJacks) to IEEE 802.3at Type 2, delivering 30W. Available in single / multiple port configurations, from 1x1 to 2x8 (16 Ports). MagJack speeds include: 10/100 Base-T, Gigabit, 2.5G, 5G & 10G. Additional options include LED's With/Without, Single/Bi-Colour, LH/RH Colours. Package options: horizontal 90° & vertical mount, PCB through hole, SMT, with/without EMI grounding tabs, tab up or down, contact plating and insulator materials. > Back to MagJacks Main Page.

GO TO MAGJACKS BY SPEED

10/100 Base-T
Gigabit
2.5G
5G
10G

10/100 BASE-T

501-3101

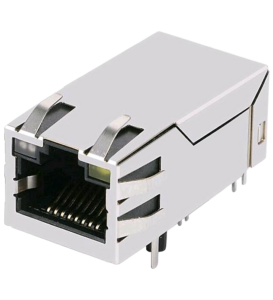

501-3101 POE+ MagJack, 30W, Type 2, 100Base-T, Tab-Up, EMI Fingers, TH, 90°, 32.6mm
POE+ 30W, 100Base-T, Tab-Up, LED Options - See Data, EMI, TH, 90°, UL94V-0, L = 32.6mm
501-3102
501-3102 POE+ MagJack, 30W, Type 2, 100Base-T, Tab-Up, EMI Fingers, TH, 90°, 32.6mm
POE+ 30W, 100Base-T, Tab-Up, LED Options - See Data, EMI, TH, 90°, UL94V-0, L = 32.6mm
501-3103
501-3103 POE+ MagJack, 30W, Type 2, 100Base-T, Tab-Up, EMI Fingers, TH, 90°, 32.6mm
POE+ 30W, 100Base-T, Tab-Up, LED Options - See Data, EMI, TH, 90°, UL94V-0, L = 32.6mm
501-3104
501-3104 1 Port MagJack, 100Base-T POE+, Tab Up, EMI, 21.60mm
POE+ 30W, 100Base-T, Tab-Up, LED Options - See Data, EMI, TH, 90°, UL94V-0, L = 21.6mm
501-3105
501-3105 1 Port MagJack, 100Base-T POE+, Tab Up, EMI, 21.60mm
POE+ 30W, 100Base-T, Tab-Up, LED Options - See Data, EMI, TH, 90°, UL94V-0, L = 21.6mm
501-3106

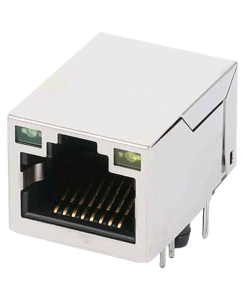

501-3106 1 Port MagJack, 100Base-T POE+, Tab Up, No EMI, 21.60mm
POE+ 30W, 100Base-T, Tab-Up, LED Options - See Data, No EMI, TH, 90°, UL94V-0, L = 21.6mm
501-3107

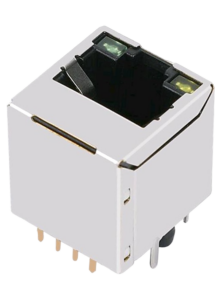

501-3107 MagJack POE+, 30W, 100Base-T, Vert, TH, No EMI.
POE+ 30W, 100Base-T, LED Options - See Data, No EMI, Vertical TH, UL94V-0, H = 17mm
501-3108

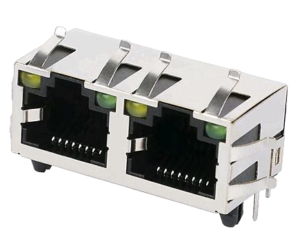

501-3108 MagJack 1X2, 100 Base-T, POE+, 30W, Tab-Up, TH, 90°, EMI, 25.4mm
POE+ 30W, 100Base-T, 1X2, Tab-Up, LED Options - See Data, EMI, TH, UL94V-0, L = 25.4mm
501-3109

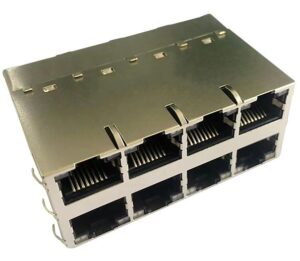

501-3109 MagJack 2X4, 100 Base-T, POE+, 30W, TH, 90°, EMI, 28.4mm
POE+ 30W, 100Base-T, 2X4 Port, LED Options - See Data, EMI Fingers, TH, UL94V-0, L = 28.4mm

GIGABIT MAGJACKS

501-1003
501-1003 MagJack, POE+ 30W, Type 2, 1G, Tab-Down, LED Options, No EMI, TH, 90°, UL94V-0. Replaces Wurth 7499510440, TE 2337992-8
POE+ 30W, Type 2, 1G, Tab-Down, LED Options - See Data, No EMI, TH, 90°, UL94V-0, L = 21.25mm
501-3202
501-3202 MagJack POE+ 30W, Type 2, 1G, Tab-Up, EMI Fingers, TH, 90°, 32.6mm
POE+ 30W, Type 2, 1G, Tab-Up, LED Options - See Data, EMI, TH, 90°, UL94V-0, L = 32.6mm
501-3203
501-3203 MagJack POE+ 30W, Type 2, 1G, Tab-Up, EMI Fingers, TH, 90°, 32.6mm
POE+ 30W, Type 2, 1G, Tab-Up, LED Options - See Data, EMI, TH, 90°, UL94V-0, L = 32.6mm
501-3204

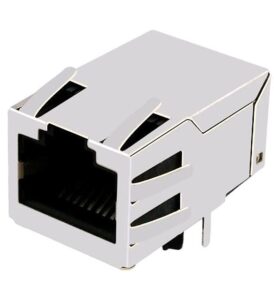

501-3204 MagJack POE+ 30W, Type 2, 1G, Tab-Up, EMI Fingers, No LED, TH, 90°, 32.6mm
POE+ 30W, Type 2, 1G, Tab-Up, No LED's, EMI Fingers, TH, 90°, UL94V-0, L = 32.6mm
501-3205
501-3205 POE+ 30W, Type 2, 1G MagJack, 2X1, EMI Fingers, TH, 90°, 38.53mm
POE+ 30W, Type 2, 1G, 2X1 Port, LED Options - See Data, EMI, TH, 90°, UL94V-0, L = 38.53mm
501-3206
501-3206 POE+ 30W, Type 2, 1G MagJack, 2X1, EMI Fingers, TH, 90°, 38.35mm
POE+ 30W, Type 2, 1G, 2X1 Port, LED Options - See Data, EMI, TH, 90°, UL94V-0, L = 38.35mm
501-3207

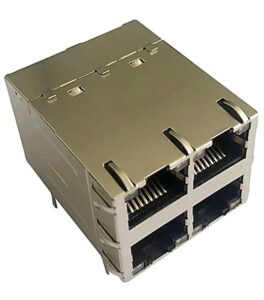

501-3207 POE+ 30W, Type 2, 1G MagJack, 2X2, EMI Fingers, TH, 90°, 38.30mm
POE+ 30W, Type 2, 1G, 2X2 Port, LED Options - See Data, EMI, TH, 90°, UL94V-0, L = 38.30mm
501-3208
501-3208 POE+ 30W, Type 2, 1G MagJack, 2X4, EMI Fingers, TH, 90°, 38.30mm
POE+ 30W, Type 2, 1G, 2X4 Port, LED Options - See Data, EMI, TH, 90°, UL94V-0, L = 38.30mm
501-3209

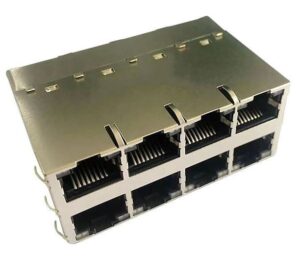

501-3209 POE+ 30W, Type 2, 1G MagJack, 2X4, EMI Fingers, TH, 90°, 38.30mm
POE+ 30W, Type 2, 1G, 2X4 Port, LED Options - See Data, EMI, TH, 90°, UL94V-0, L = 38.30mm

2.5G MAGJACKS

501-3301

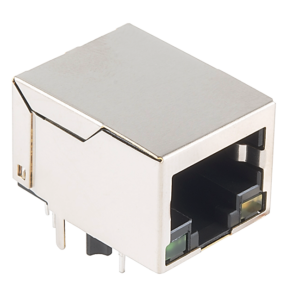

501-3301 MagJack POE+ 30W, Type 2, 2.5G, Tab-Down, No EMI, TH, 90°, UL94V-0
POE+ 30W, 2.5G, Tab-Down, LED Options - See Data, No EMI, TH, 90°, UL94V-0, L = 21.25mm
501-3302

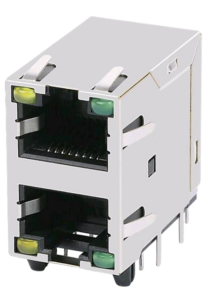

501-3302 POE+ 30W, Type 2, 2X1 MagJack 2.5G, EMI, TH, 90°, UL94V-0
POE+ 30W, 2.5G, 2X1 Port, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 38.53mm
501-3303
501-3303 POE+ 30W, Type 2, 2X1 MagJack 2.5G, EMI, No LED, TH, 90°, UL94V-0
POE+ 30W, 2.5G, 2X1 Port, NO LED's, EMI Fingers, TH, 90°, UL94V-0, L = 38.53mm

5G MAGJACKS

Please contact us for available products.

10G MAGJACKS

Please contact us for available products.

> Back to MagJacks Main Page. MPSI provides a range of PoE+ (30W) MagJacks, where types are not shown please contact us.
