IEC FILTERED INLETS

We specialise in Power Entry Modules/Filtered Power Inlets and can help reduce cost on your application, with consistently short lead-times and/or managed inventories in support of production.

High reliability IEC Filtered Power Inlets combining C14 IEC inlet connector & filter in a compact all-in-one solution. We offer assembly options of chassis panel screw mount or snap-fit. Termination options include 6.3mm faston terminals, 4mm solder terminals and pre-wired. Electrically, our power entry modules are available with 1A – 15A current ratings, 115/250 VAC, hipot rating (line-to-line) 1450 VDC and line-to-Ground 2250 VDC. Excellent line to line & line to ground EMI suppression. UL, TUV, CQC & CE safety compliance. We show standard options here, but additional options include Medical Grade, additional Resistor or Choke. Custom versions or manufacture to specification available upon request. Please see 'Additional Custom Options' in our datasheets for options and order codes.

704-4101
704-4101 IEC Inlet Filter Panel Mount, 1-15A, Faston Terms
Panel Screw Mount, 1A - 15A. 6.3*0.8mm Faston as Std (options available). UL/TUV/CQC/CE.
704-4201
704-4201 IEC Inlet Filter, 1-15A, Panel Mount, Faston Terms
Panel Screw Mount, 1A - 15A, 6.3*0.8mm Faston as Std (options available), Flange. UL/TUV/CQC/CE.
704-4301
704-4301 IEC Inlet Filter, 1-15A, Snap-Fit, Faston Terms
Snap-Fit Top/Bott Shrapnel, 1A - 15A, 6.3*0.8mm Faston as Std (options available). UL/TUV/CQC/CE.
704-4401

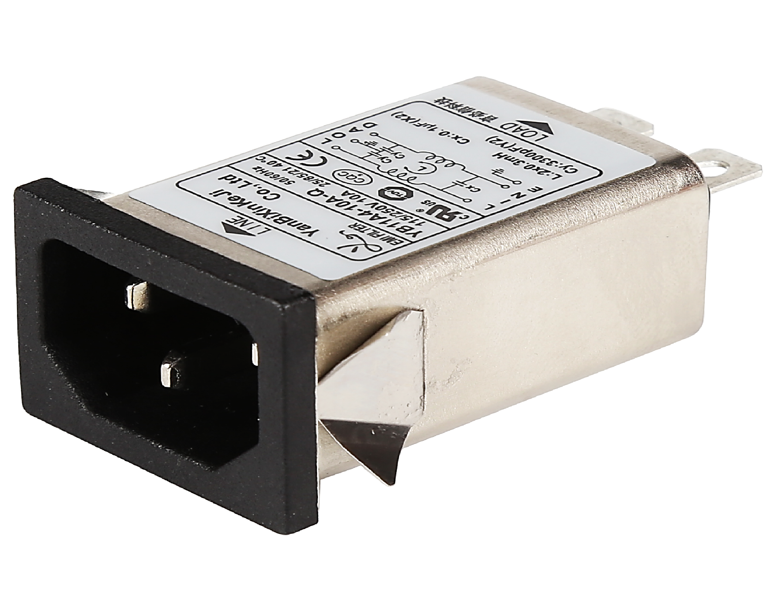

704-4401 IEC Inlet Filter 1-15A, Snap-Fit Left-Right, Faston Terms
Snap-Fit Left/Right Shrapnel, 1A - 15A, 6.3*0.8mm Faston as Std (options available). UL/TUV/CQC/CE.

> Back to Filtered Power Entry Modules & Inlets. MPSI provides a broad range of IEC Filtered Power Inlets, where types are not shown please contact us.
