USB Type C Connectors

USB Type C (USB-C) Connectors Supplier

Why Choose MPSI for USB Type C Connectors?

MPSI are specialists in high-quality USB Type C (USB-C) Connectors. We can help reduce application cost and drive efficiency in production processes, with highly competitive pricing, consistently short, reliable lead times and managed inventories. We provide design-in support and samples available on request. Just email sales@mpsiconnex.com with your requirements. We are here to support you.

Our Range of USB Type C Connectors

Quality, highly competitive USB Type C Connectors in USB 2.0, 3.0, 3.1, 3.2 & 4.0. Options include: surface mount (SMT), through hole and hybrid variants in a number of orientations including PCB vertical, horizontal 90° and top and mid-mount. Our variants include single-port USB, multi-port USB and combined USB and RJ Modular Jack connectors. MPSI USB Type C connectors are available with different insulator materials (such as PBT, LCP etc), shell materials, contact plating and packaging options. Where a particular specification isn't shown, please contact us as we likely have the capability to produce/supply it.

Browse our extensive USB Type C (USB-C) Connectors range below:

607-0003
607-0003 USB TYPE C 24 PIN VERTICAL MOUNT DUAL ROW SMT 10.5MM BODY HEIGHT LOW COST
USB 3.1 Type C Female, 5 Gbps, 24P, 5A, PCB SMT, Vert, Height Options, UL94V-0

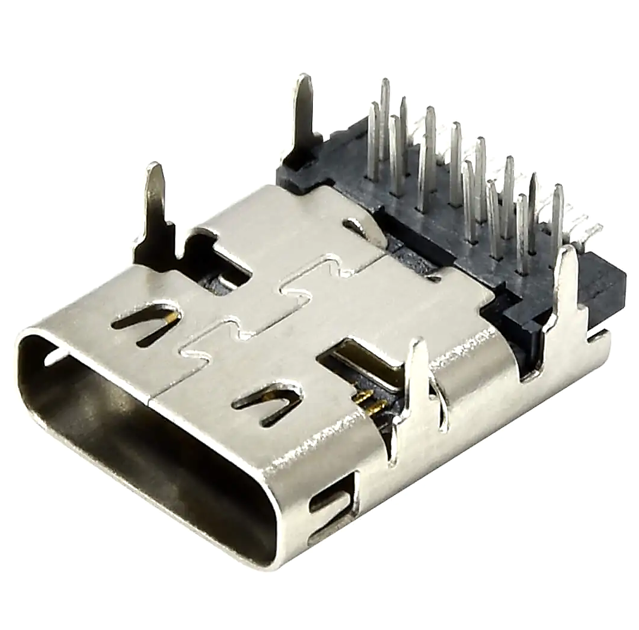

607-0004
607-0004 USB 3.1 TYPE C 24P FEM, RA, TOP MNT, HYBRID
USB 3.1 Type C Female, 5 Gbps, 24P, 5A, PCB Top Mount 90°, Hybrid (SMT/TH), UL94V-0

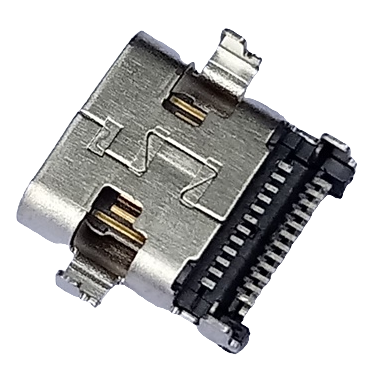

607-0005
607-0005 USB TYPE C 24 P MID MOUNT DUAL ROW SMT
USB 3.1 Type C Female, 5 Gbps, 24P, 5A, PCB SMT, 90° Mid Mount, UL94V-0.

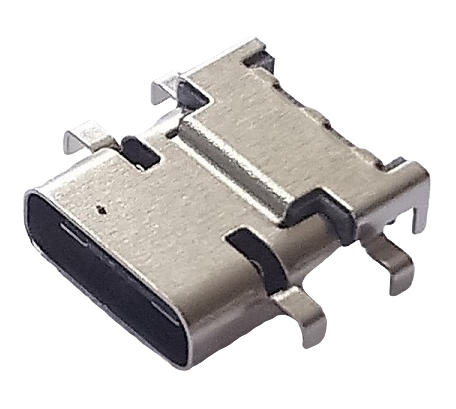

607-0006
607-0006 USB 3.1 TYPE C 24P FEM, RA, MID, HYBRID
USB 3.1 Type C Female, 5 Gbps, 24P, 5A, PCB Hybrid (SMT/TH), 90° Mid Mount, UL94V-0.
607-0007
607-0007 USB TYPE C TOP MOUNT HYBRID RIGHT ANGLE
USB 3.1 Type C Female, 5 Gbps, 24P, 5A, PCB Hybrid (SMT/TH), 90° Top Mount, UL94V-0

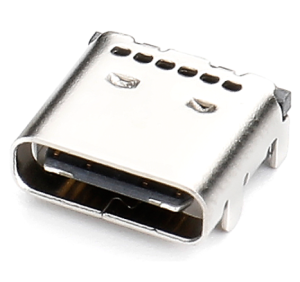

607-0009
607-0009 USB 3.1 Type C Recept, Top-Mount, Dual SMT, RA, 24 Pin
USB 3.1 Type C Female, 5 Gbps, 24P, 5A, PCB SMT, Top Mount 90°, UL94V-0.
607-0012
607-0012 USB TYPE C 14 PIN USB 2.0 FLAG STYLE THROUGH HOLE. REPLACES KUSBX-SL-CS1N14-B
USB 2.0 Type C Female, 14P,  5A, 90° PCB Flag Mount TH. Repl KUSBX-SL-CS1N14-B
607-0013
USB Type C 3.1. Gen 2, 10Gbps, 24 Pin Fem, 5A, SMT, 90° 'Flag' Style.
USB 3.1 Gen 2 Type C Female, 10 Gbps, 24P, 5A, SMT, 90° 'Flag' Style, UL94V-0.

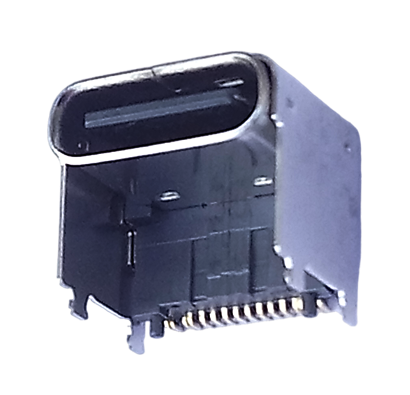

607-0014
607-0014 USB 2.0 TYPE C 16P FEM, TOP, HORIZ, SMT, RA (MOLEX 217180-0001)
USB 2.0 Type C Female Elevated, 16 Pin, 5A, PCB SMT 90°, Repl Molex 217180-0001.
607-1000
607-1000 USB-3.1 Type-C 24P Male Plug RA Edge Mid-Mount SMT
USB 3.1 Type C Male Plug, 5 Gbps, 24P, 5A, PCB SMT, 90° Edge, Mid Mount, UL94V-0

MPSI provides a broad range of USB-C Connectors, where types are not shown please contact us.
