USB 2.0 Connectors

USB 2.0 CONNECTORS

Why Choose MPSI for USB 2.0 Connectors?

MPSI are specialists in high-quality USB 2.0 Connectors. We can help reduce application cost and drive efficiency in production processes, with highly competitive pricing, consistently short, reliable lead times and managed inventories. We provide design-in support and samples available on request. Just email sales@mpsiconnex.com with your requirements. We are here to support you.

Our Range of USB 2.0 Connectors

Quality, highly competitive USB 2.0 Connectors from MPSI in USB Type A, Type B and Micro formats. Options include: surface mount and through hole variants in a number of orientations including PCB vertical, horizontal 90° and reverse mount. Our variants include single port USB, multi-port USB and combined USB and RJ Modular Jack connectors. MPSI USB 2.0 connectors are available with different insulator materials (such as PBT, LCP etc), colours, shell materials (such as copper alloy and steel), contact plating and packaging options.

USB 2.0 TYPE A

604-0001
604-0001 USB 2.0 Connector, Type A, Female, Single Port, 1.5A Rated, PCB Through-Hole, Vertical Mount
USB 2.0, Type A, Female, 1 Port, 1.5A, Vert PCB TH, 15mm Height, UL94V-0, Tray.
604-0002

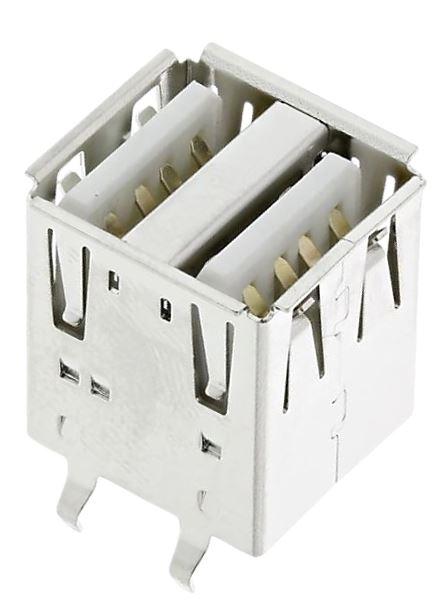

604-0002 USB 2.0 TYPE A DUAL PORT VERT TH. ALT WURTH 614008235023
USB 2.0, Type A, Female, 2 Port, 1.5A, Vert PCB TH, UL94V-0. Alt Wurth 614008235023.
604-0003
604-0003 USB 2.0 Connector, Type A, Female, Single Port, 1.5A Rated, PCB Through-Hole, Vertical Mount
USB 2.0, Type A, Female, 1 Port, 1.5A, Vert PCB TH, 13.7mm Height, UL94V-0, Tray.
604-0006
604-0006 USB 2.0 Type A 90° Reverse Type Through Hole
USB 2.0, Type A, Fem, 1 Port, 1.5A, Reverse Type 90°, PCB TH, UL94V-0, Tray.
604-0007

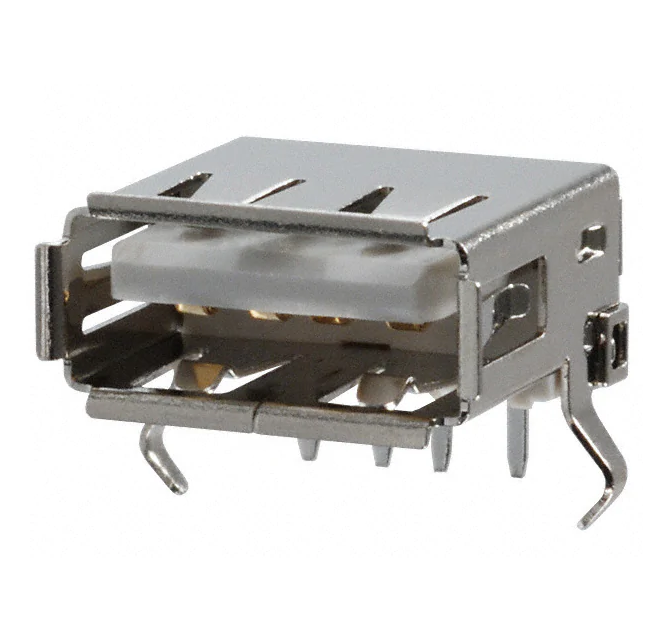

604-0007 USB 2.0 Type A, Female, Single Port, 1.5A, PCB Through-Hole, Horizontal 90° Mount, UL94V-0, Tray Packaging
USB 2.0, Type A, Female, 1 Port, 1.5A, Horizontal 90°, PCB TH, UL94V-0, Tray.
604-0012
604-0012 USB 2.0 TYPE A VERT FLAG MOUNT TH
USB 2.0, Type A, Fem, 1.5A, 'Flag', TH. Alt. Amphenol GSB19110KEU / Molex 89485-8000
604-0014
604-0014 USB 2.0 TYPE A DUAL PORT RIGHT ANGLE THROUGH HOLE, Replaces Molex 67298-4090
USB 2.0, Type A, Female, 2 Port, 1.5A, 90°, PCB TH, UL94V-0, Tray. Replaces Molex 67298-4090

USB 2.0 TYPE B

604-0009
604-0009 USB 2.0 Type B, Female, Single Port, 1.5A, PCB TH, Right Angle
USB 2.0, Type B, Female, 1 Port, 1.5A, Horiz 90°, PCB TH, UL94V-0, Tray.
604-0010

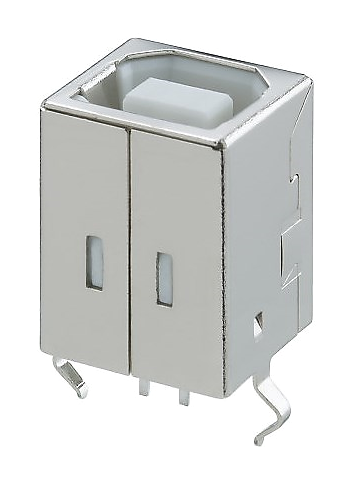

604-0010 USB 2.0 Type B, Female, Single Port, Vert 1.5A, PCB TH
USB 2.0, Type B, Female, 1 Port, 1.5A, Vert PCB TH, UL94V-0, Tray.

USB 2.0 MICRO

603-0007
603-0007 Micro USB 2.0 Type B Receptacle RA SMT
USB 2.0 Micro, Type B, Female, 1 Port, 1.8A, Horiz 90°, PCB SMT, UL94V-0, T&R.

MPSI provides a broad range of USB 2.0 Connectors, where types are not shown please contact us.

Disclaimer: Datasheets are provided for information purposes. Please validate with us to confirm latest revision. Data is believed to be accurate & represented by MPSI in good faith based upon info provided by our manufacturers. MPSI assumes no responsibility for accuracy or completeness, any error in or omission from it or for any use made of it. Users should satisfy themselves of suitability for their application and not make any assumptions based on information included or omitted. Thank you.
