POWER ENTRY MODULES - IEC INLET + FUSE + SWITCH

We specialise in Power Entry Modules/Filtered Power Inlets and can help reduce cost on your application, with consistently short lead-times and/or managed inventories in support of production.

High reliability IEC Filtered Power Entry Modules combining C14 IEC inlet connector, filter, single or double fuse (Ø 5 x 20 mm) & switch in a compact all-in-one solution. We offer assembly options of chassis panel screw mount or snap-fit. Termination options include 6.3mm faston terminals, 4mm solder terminals and pre-wired. Switches are available as a standard black rocker switch or alternately red or green illuminated. Electrically, our power entry modules are available with 1A – 10A current ratings, 115/250 VAC, hipot rating (line-to-line) 1450 VDC and line-to-Ground 2250 VDC. Excellent line to line & line to ground EMI suppression. UL, TUV, CQC & CE safety compliance. We show standard options here, but additional options include Medical Grade, IP Rated, Additional Resistor or Choke. Custom versions or manufacture to specification available upon request. Please see 'Additional Custom Options' in our datasheets for options and order codes.

704-3101
704-3101 Power Entry Module, Single Fuse & Switch 1-10A, Panel Mount LR
IEC Power Entry Module, Single Fuse & Switch, Panel Mount L/R, 1-10A. UL/TUV/CQC/CE
704-3201
704-3201 Power Entry Module, Double Fuse & Switch 1-10A, Panel Mount LR
IEC Power Entry Module, Double Fuse & Switch, Panel Mount L/R, 1-10A. UL/TUV/CQC/CE
704-3301
704-3301 Power Entry Module, Singles Fuse & Switch 1-10A, Panel Mount Top Bottom.
IEC Power Entry Module, Single Fuse & Switch, Panel Mount Top/Bott, 1-10A. UL/TUV/CQC/CE
704-3401
704-3401 Power Entry Module, Double Fuse & Switch 1-10A, Panel Mount Top Bottom
IEC Power Entry Module, Double Fuse & Switch, Panel Mount Top/Bott, 1-10A. UL/TUV/CQC/CE
704-3501

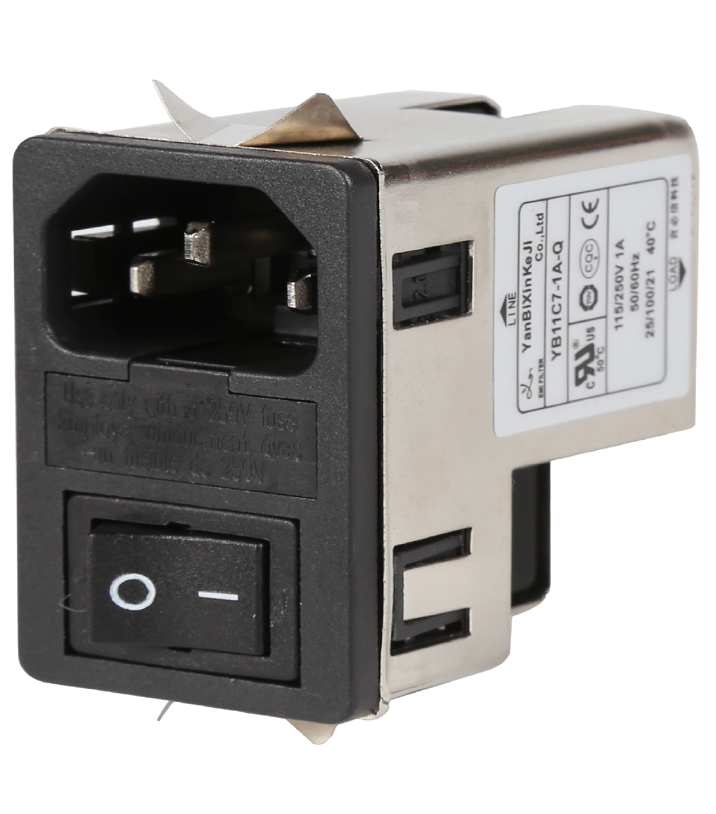

704-3501 Power Entry Module, Single Fuse & Switch 1-10A, Snap-Fit Top & Bottom
IEC Power Entry Module, Single Fuse & Switch, Snap-Fit Top/Bott, 1-10A. UL/TUV/CQC/CE
704-3601
704-3601 Power Entry Module, Double Fuse & Switch 1-10A, Snap-Fit Top & Bottom
IEC Power Entry Module, Double Fuse & Switch, Snap-Fit Top/Bott, 1-10A. UL/TUV/CQC/CE
704-3701
704-3701 Compact Power Entry Module, Single Fuse & Switch 1-10A, Snap-Fit Top & Bottom
IEC Compact Power Entry Module, Single Fuse & Switch, Snap-Fit, 1-10A. UL/TUV/CQC/CE
704-3901
704-3901 Power Entry Module, Single Fuse & Horiz Switch 1-10A, Panel Mount Left Right
IEC Power Entry Module, Single Fuse, Horiz Switch, Pnl Mount L/R, 1-10A. UL/TUV/CQC/CE

> Back to Filtered Power Entry Modules & Inlets. MPSI provides a broad range of Fused & Switched IEC Filtered Power Entry Modules, where types are not shown please contact us.
