POWER ENTRY MODULES - IEC INLET + FUSE

We specialise in Power Entry Modules/Filtered Power Inlets and can help reduce cost on your application, with consistently short lead-times and/or managed inventories in support of production.

High reliability IEC Filtered Power Entry Modules combining C14 IEC inlet connector, filter & single or double fuse (Ø 5 x 20 mm) in a compact all-in-one solution. We offer assembly options of chassis panel screw mount or snap-fit. Termination options include 6.3mm faston terminals, 4mm solder terminals and pre-wired. Electrically, our power entry modules are available with 1A – 10A current ratings, 115/250 VAC, hipot rating (line-to-line) 1450 VDC and line-to-Ground 2250 VDC. Excellent line to line & line to ground EMI suppression. UL, TUV, CQC & CE safety compliance. We show standard options here, but additional options include Medical Grade, IP Rated, Additional Resistor or Choke. Custom versions or manufacture to specification available upon request. Please see 'Additional Custom Options' in our datasheets for options and order codes.

704-1101

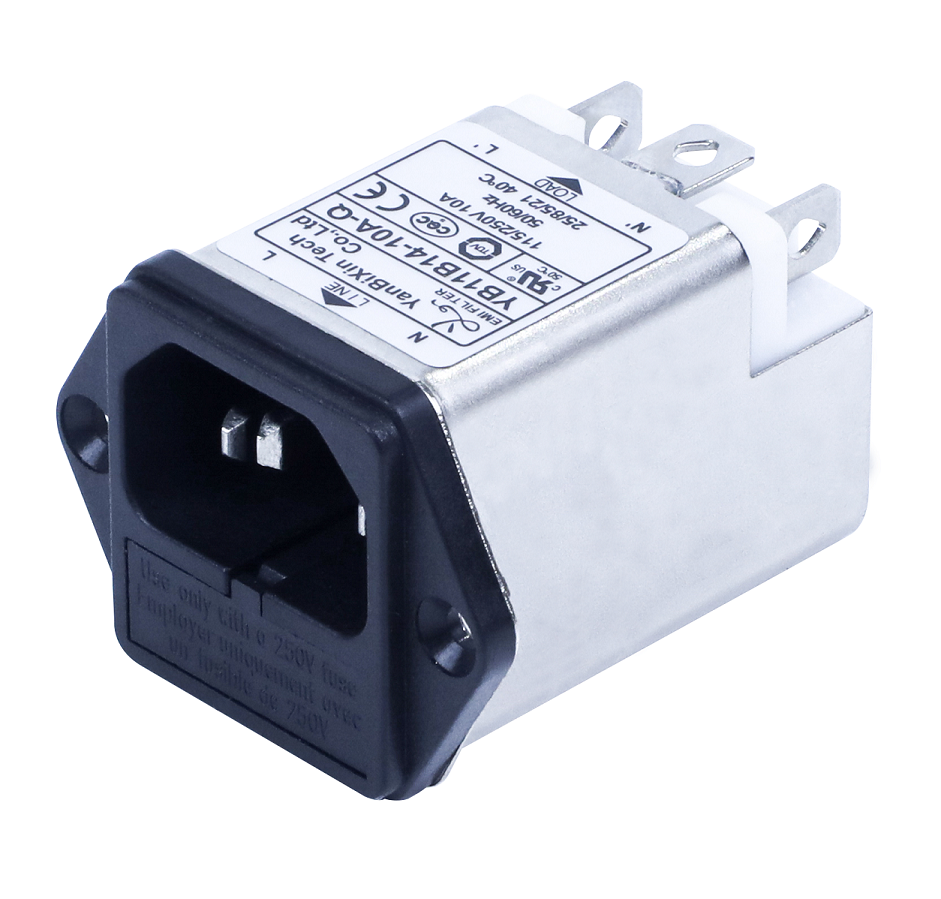

704-1101 Inlet Filter, Single Fuse 1-10A, Panel Mount LR, Faston Terms
IEC Power Entry Module, Single Fuse, Panel Mount L/R, 1-10A. UL/TUV/CQC/CE.
704-1201
704-1201 IEC Inlet Filter Double Fuse 1-10A, Panel Mount LR, Faston Terms
IEC Power Entry Module, Double Fuse, Panel Mount L/R, 1-10A. UL/TUV/CQC/CE.
704-1301
704-1301 IEC Inlet Filter Single Fuse , 1-10A, Snap-Fit, Faston Terms
IEC Power Entry Module, Single Fuse, Snap Fit L/R, 1-10A. UL/TUV/CQC/CE.
704-1401
704-1401 Compact Inlet Filter, Single Fuse 1-10A, Panel Mount LR, Faston
Compact IEC Power Entry Module, Single Fuse, Panel Mount L/R, 1-10A. UL/TUV/CQC/CE.
704-1501
704-1501 Compact Inlet Filter, Double Fuse 1-10A, Panel Mount LR, Faston
Compact IEC Power Entry Module, Double Fuse, Panel Mount L/R, 1-10A. UL/TUV/CQC/CE.
704-0001
704-0001 Power Entry Module, Fuse, Pnl Mnt, 1-10A, UL, VDE, CE
IEC Power Entry Module, Single Fuse, Panel Mount L/R, 1-10A, UL/VDE/CE. (See 704-1101)
704-0009
704-0009 Power Entry Module C14 IEC Inlet + Fuse, Snap-Fit, 1-10A
IEC Power Entry Module, Single Fuse, Snap-Fit L/R, 1-10A, UL/VDE/CE. (See: 704-1301)

> Back to Filtered Power Entry Modules & Inlets. MPSI provides a broad range of Fused IEC Filtered Power Entry Modules, where types are not shown please contact us.
