PoE++ MagJacks

PoE++ IEEE 802.3bt TYPE 3 (45-60W) MAGJACKS

Extensive range of highly competitive, quality PCB mount PoE++ (Power over Ethernet) RJ45 Magnetic Jacks (MagJacks) to IEEE 802.3bt Type 3, delivering upto 60W. Available in single / multiple port configurations, from 1x1 to 2x8 (16 Ports). MagJack speeds include: Gigabit, 2.5G, 5G & 10G. Additional options include LED's With/Without, Single/Bi-Colour, LH/RH Colours. Package options: horizontal 90° & vertical mount, PCB through hole, SMT, with/without EMI grounding tabs, tab up or down, contact plating and insulator materials. All Products are compatible with Marvell and Microchip PHY.

Here we list our common items but our range is extensive and includes many of the above configuration options.
Please contact us for types not shown and we will provide applicable quotes and datasheets.

> Back to MagJacks Main Page.

GO TO MAGJACKS BY SPEED

Gigabit
2.5G
5G
10G

GIGABIT MAGJACKS

501-4202

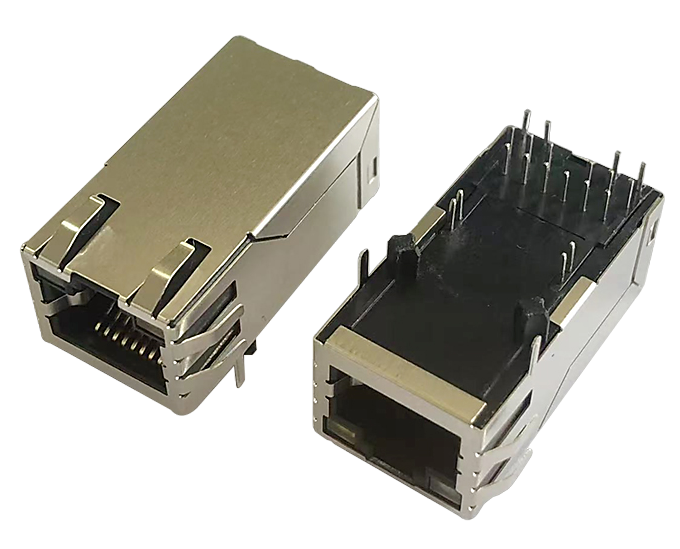

501-4202 POE++ Type 3, 1GB, Tab-Up, LED's Grn_Ora, Yell EMI, TH, 90°, 802.3bt 45W L = 32.6mm
POE++ 45W, Type 3, 1G, Tab-Up, LED Options - See Data, EMI, TH, 90°, UL94V-0. L = 32.60mm
501-4203

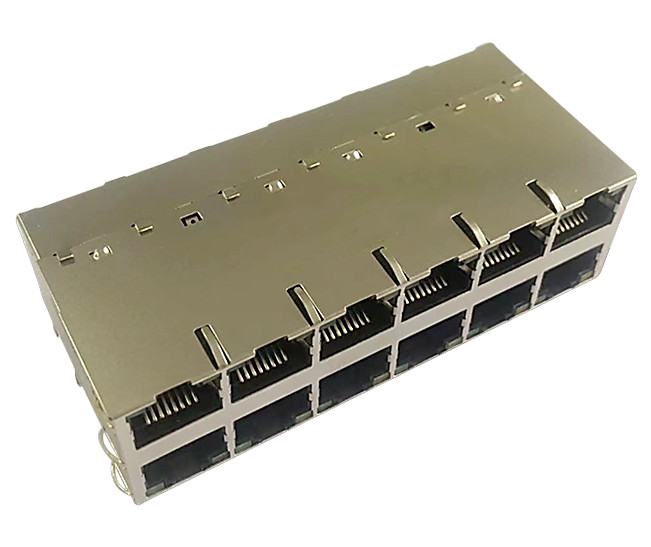

501-4203 POE++ Type 3, 1G, 2X6 Port, LED's Grn_Yell, EMI, TH, 90°, 802.3bt 60W
POE++ 60W, Type 3, 1G, 2X6 Ports, LED Options - See Data, EMI, TH, 90°, UL94V-0.

2.5G MAGJACKS

Please contact us for available products.

5G MAGJACKS

Please contact us for available products.

10G MAGJACKS

501-4501

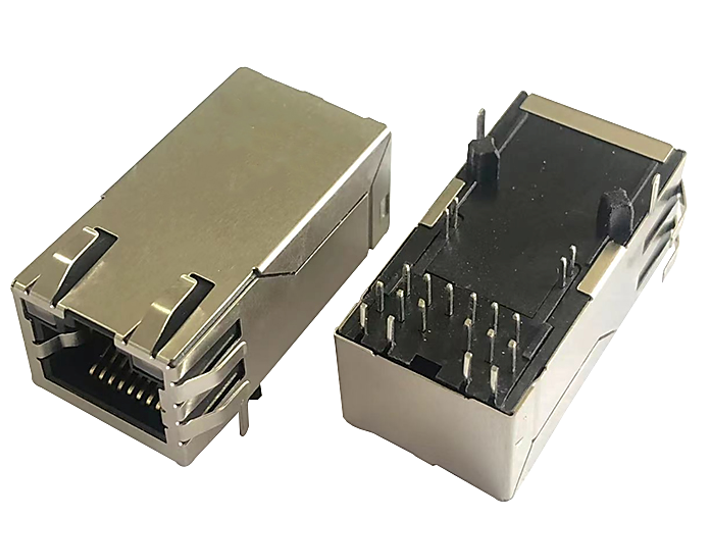

501-4501 POE++ Type 3, 10GB, Tab-Up, LED's Grn_Yell, Grn_Yell, EMI, TH, 90°, 802.3bt 60W L = 32.6mm
POE++ 60W, Type 3, 10G, Tab-Up, LED Options - See Data, EMI, TH 90°, UL94V-0. L = 32.6mm

> Back to MagJacks Main Page. MPSI provides a range of PoE++ (60W) MagJacks, where types are not shown please contact us.
