Various Connectors

Various Connectors

MPSI has a variety of high quality, competitive, short lead-time connectors designed into customer products. Although not part of our focus range online, we still offer the same high levels of support to meet any needs you may have. For any enquiries on these or related products just email sales@mpsiconnex.com or call with your requirements, thank you.

DC POWER 200-7001
200-7001 DC POWER JACK 2.5MM THROUGH HOLE RIGHT ANGLE 10A SHIELDED
2.5mm Centre Pin, 10A, 90° Horizontal, Through-Hole, Shielded, UL94V-0
DC POWER 200-7002
200-7002 DC PWR JACK 5A, 2.5MM CENTRE PIN VERTICAL TH
2.5mm Centre Pin, 5A, 180° Vertical, Through-Hole, Unshielded, UL94V-0
DC POWER 200-1001
200-1001 DC POWER JACK 2.0MM PIN SMT RIGHT ANGLE 5A UNSHIELDED
2.0mm Centre Pin, 5A, 90° Horizontal, SMT, Unshielded, UL94V-0
D-SUB 601-0001
601-0001 Male D-Sub, Std Density, PCB TH 180° Mount, Machined Contacts (Alt Positronic MD15M3S000)
D-Sub, Male, PCB TH 180° Mount, Machined Contacts (Alt Positronic MD15M3S000), UL94V-0.
D-SUB 601-0002
601-0002 D-Sub Standard Density, Male, Right Angle, Turned Pin Extended Contacts. Replacement Positronic MD25M4S
D-Sub, Male, PCB TH 90° Mnt, Extended Machine Contacts. Tooling applies, repl Positronic MD25M4S
D-SUB 601-0003
601-0003 D-Sub Standard Density, Male, Right Angle, Machined Contacts.
D-Sub, Male, PCB TH 90° Mount, Machined Contacts, Highly Competitive, UL94V-0.
D-SUB 601-0004
601-0004 D-Sub High Density, Male, Right Angle, Machined Contacts
D-Sub, Male, High Density, PCB TH 90° Mount, Machined Contacts, Highly Competitive, UL94V-0.
DUAL D-SUB 600DDRFF09BABS
600DDRFF09BABS DUAL PORT D-SUB 9F-9F
Dual Port D-Sub, 9-Way Female/9-Way Female Combo, PCB RA TH, UL94V-0.
DUAL D-SUB 600DDRMF09BABS
600DDRMF09BABS DUAL PORT D-SUB 9M-9F
Dual Port D-Sub, 9-Way Male/9-Way Female Combo, PCB RA TH, UL94V-0.
DUAL D SUB 600DDRFF25BABS
DUAL PORT D-SUB CONNECTORS 600DDRFF25BABS
Dual Port D-Sub, 25-Way Female - 25-Way Female Combo, PCB RA TH, UL94V-0.
SMT IDC TRANSITION HDR 102-1002
102-1002 SMT 2.0mm Pitch IDC Transition Header
PCB SMT, 2.00mm Pitch, IDC Transition Hdr, Hi-Temp PA6T Plastic, 6-80 Pos, 1A, UL94V-0
SMT IDC TRANSITION HDR 102-0002
102-0002 SMT 2.54MM PITCH IDC TRANSITION HEADER
PCB SMT, 2.54mm Pitch, IDC Transition Hdr, Hi-Temp PA6T Plastic, 6-64 Pos, 3A, UL94V-0
MINI DIN PANEL WIRED 300-1000
300-1000 Mini DIN Unshielded Chassis Panel Mount Sockets
Mini DIN Unshielded Chassis Panel Mount Sockets, No Wires or Pre-Wired, UL94V-0
RJ50 MODULAR 500-4001
500-4001 RJ50 10P10C Connector 1 Port TH 90° Shielded
RJ50 10P10C Conn, 1 Port, Tab-Down, Through-Hole, 90° Shielded, No LED's, EMI Fingers.
RJ45 MODULAR 500-2001
500-2001 RJ45 8P8C Conn 1 Port, Tab-Up, CAT 5, TH 90° Shielded
RJ45 8P8C Conn, 1 Port, Tab-Up, Through-Hole, 90° Shielded, No LED's, EMI Fingers.
RJ12 MODULAR 500-1001
500-1001 RJ12 6P6C 1x1, THROUGH HOLE, RIGHT ANGLE
Mini RJ12 6P6C Socket 1x1, Through Hole, Right Angle, Unshielded
RJ11 MODULAR 500-0001
500-0001 RJ11 6P4C 1x1, THROUGH HOLE, RIGHT ANGLE, UNSHIELDED
Mini RJ11 6P4C Socket 1x1, Through Hole, Right Angle, Unshielded
RJ11 MODULAR 500-0010
500-0010 RJ11 6P4C 1x1, TH, VERTICAL
RJ11 6P4C Socket 1x1, Through Hole, Vertical, Unshielded
MICRO SD SOCKET 301-0002
301-0002 MicroSD Card Socket, Push-Push, Metal Shield, PCB RA SMT, UL94V-0
MicroSD Card Socket, Push-Push, Metal Shield, PCB RA SMT, UL94V-0, Taped or Tray.

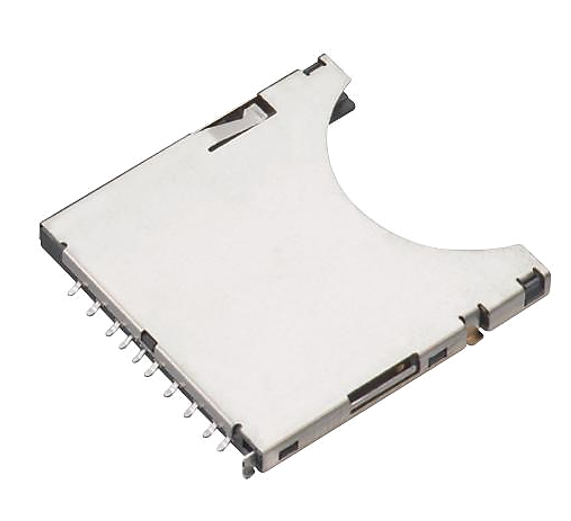

SD CARD SOCKET 301-0005
301-0005 SD Card Socket, Push-Push, Metal Shield, PCB RA SMT, UL94V-0
SD Card Socket, Push-Push, Metal Shield, PCB RA SMT, UL94V-0, Tray Packaging.
IEC C14 / C13 ADAPTOR 700-0000
700-0000 C13 to C14 Adaptor Up Angle
IEC320 C14 Male to C13 Adaptor, 90° Up Angle, 15A, 125V / 250V, CE/RoHS Compliant
