USB 3 Series Connectors

USB 3 Series Connectors Supplier

Why Choose MPSI for USB 3 Series Connectors?

MPSI are specialists in high-quality USB 3 Series Connectors. We can help reduce application cost and drive efficiency in production processes, with highly competitive pricing, consistently short, reliable lead times and managed inventories. We provide design-in support and samples available on request. Just email sales@mpsiconnex.com with your requirements. We are here to support you.

Our Range of USB 3 Connectors

Quality, highly competitive USB 3 Connectors (3.0, 3.1 and 3.2) in USB Type A, Type B and Micro formats. Options include: surface mount (SMT) and through hole variants in a number of orientations including PCB vertical, horizontal 90° and reverse mount. Our variants include single-port USB, multi-port USB and combined USB and RJ Modular Jack connectors. MPSI USB 3 connectors are available with different insulator materials (such as PBT, LCP etc), shell materials, contact plating and packaging options.

USB 3.0 TYPE A

605-0001
605-0001 USB 3.0 Connector, Type A Receptacle, Vertical, Single Port, Through-Hole, UL94V-0
USB 3.0, Type A, Female, 1 Port, 1.8A, Vert PCB TH, UL94V-0, Tray.

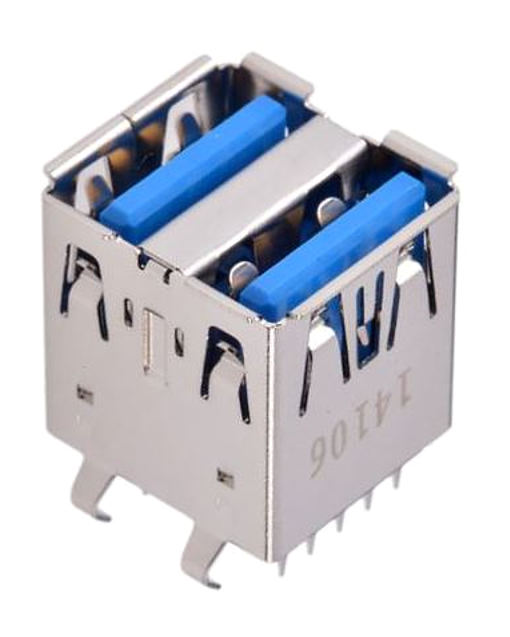

605-0002
605-0002 USB 3.0 Connector, Type A Receptacle, Dual Port, Vertical Through-Hole UL94V-0. Equivalent to Molex 48409-0003
USB 3.0, Type A, Female, 2 Port, 1.8A, Vert PCB TH, UL94V-0, Tray. Replaces Molex 48409-0003.
605-0005
605-0005 USB 3.0 Type A Single Port Horizontal 90 TH
USB 3.0, Type A, Fem, 1 Port, 1.8A, Horiz 90°, PCB TH, UL94V-0, Tray.
605-0006
605-0006 USB 3.0 Conn, 1 Port Type A Female, Reverse Type, 90° Horizontal Mount, TH. Can Replace 48392-0003.
USB 3.0, Type A, Fem, 1 Port, 1.8A, Horiz 90°, Reverse Type, PCB TH, UL94V-0
605-0007
605-0007 USB 3.0 Type A RA Reverse Mid-Mount TH. Replaces Molex 48394-0003
Type A Recept, 1 Port, Horiz Reverse Mid-Mount 90° TH, Replaces Molex 48394-0003
605-0008
605-0008 USB 3.0 Type A RA Reverse Mid-Mount TH
Type A Recept, 1 Port, Horiz Reverse Mid-Mount 90° TH. Straight Hold-Downs.
605-0014
605-0014 USB 3.0 Type A Dual Port Right Angle TH
USB 3.0, Type A, Female, 2 Port, 1.8A, Horizontal 90°, PCB TH, UL94V-0, Tray.
605-1007
605-1007 USB 3.0 Type A Male Plug RA PCB SMT
USB 3.0, Type A, Male PCB Plug, 1 Port, 1.8A, Horizontal 90°, TH, UL94V-0, Tray.

USB 3.0 TYPE B

605-0010
605-0010 USB 3.0 Type B, 1 Port, 1.8A, Right Angle PCB TH
USB 3.0, Type B, Female, 1.8A, 90°, PCB TH, UL94V-0, Tray. Replaces Wurth 692221030100.
605-0011
605-0011 USB 3.0 Type B, 1 Port, 1.8A, Vert PCB TH
USB 3.0, Type B, Female, 1 Port, 1.8A, Vert PCB TH, UL94V-0, Tray.

USB 3.0 MICRO

Please contact us for available products.

MPSI provides a broad range of USB 3.0 Connectors, where types are not shown please contact us.
