PoE MagJacks

PoE IEEE 802.3af TYPE 1 (15W) MAGJACKS

Extensive range of highly competitive, quality PCB mount PoE (Power over Ethernet) RJ45 Magnetic Jacks (MagJacks) to IEEE 802.3af Type 1, delivering 15W. Available in single / multiple port configurations, from 1x1 to 2x8 (16 Ports). MagJack speeds include: 10/100 Base-T, Gigabit, 2.5G, 5G & 10G. Additional options include LED's With/Without, Single/Bi-Colour, LH/RH Colours. Package options: horizontal 90° & vertical mount, PCB through hole, SMT, with/without EMI grounding tabs, tab up or down, contact plating and insulator materials. > Back to MagJacks Main Page.

GO TO MAGJACKS BY SPEED

10/100 Base-T
Gigabit
2.5G
5G
10G

10/100 BASE-T

501-2101
501-2101 1 Port MagJack, 100Base-T POE, Tab Down, EMI 21.35mm
100 Base-T, Tab-Down, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 21.35mm
501-2102
501-2102 1 Port MagJack, 100Base-T POE, Tab Up, EMI, 32.6mm
100 Base-T, Tab-Up, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 32.60mm
501-2103
501-2103 1 Port MagJack, 100Base-T POE, Tab Up, EMI, 32.6mm
100 Base-T, Tab-Up, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 32.60mm
501-2104
501-2104 1 Port MagJack, 100Base-T POE, Tab Up, EMI, 32.6mm
100 Base-T, Tab-Up, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 32.60mm
501-2105
501-2105 1 Port MagJack, 100Base-T POE, Tab Up, EMI, 25.40mm
100 Base-T, Tab-Up, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 25.40mm
501-2106

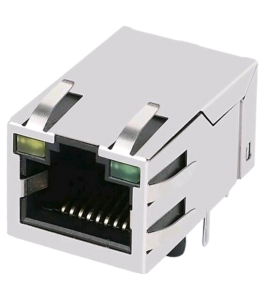

501-2106 1 Port MagJack, 100Base-T POE, Tab Up, EMI, 25.40mm
100 Base-T, Tab-Up, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 25.40mm
501-2107
501-2107 1 Port MagJack, 100Base-T POE, Tab Up, EMI, 21.60mm
100 Base-T, Tab-Up, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 21.60mm
501-2108

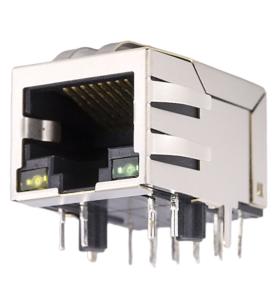

501-2108 MagJack 100 Base-T, POE 15W, Tab Down, EMI, 21.35mm
100 Base-T, Tab-Down, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 21.35mm
501-2109

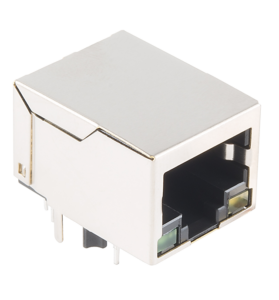

501-2109 MagJack 100 Base-T, POE 15W, Tab Down, No EMI, 21.55mm
100 Base-T, Tab-Down, LED Options - See Data, No EMI Fingers, TH, 90°, UL94V-0, L = 21.55mm
501-2110

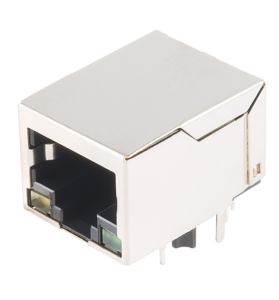

501-2110 MagJack 100 Base-T, POE 15W, Tab Down, No EMI, 21.35mm
100 Base-T, Tab-Down, LED Options - See Data, No EMI Fingers, TH, 90°, UL94V-0, L = 21.35mm
501-2111
501-2111 MagJack 100 Base-T, POE 15W, Tab Down, No EMI, 21.35mm
100 Base-T, Tab-Down, LED Options - See Data, No EMI Fingers, TH, 90°, UL94V-0, L = 21.35mm
501-2112
501-2112 MagJack 100 Base-T POE 15 W, TH, Vert, No EMI, H = 17mm
100 Base-T, LED Options - See Data, No EMI Fingers, TH, Vertical, UL94V-0, H = 17mm
501-2113
501-2113 MagJack 100 Base-T POE 15 W, TH, Vert, No EMI, H = 17mm
100 Base-T, LED Options - See Data, No EMI Fingers, TH, Vertical, UL94V-0, H = 17mm
501-2114

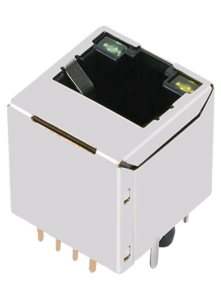

501-2114 MagJack 100 Base-T POE 15 W, TH, Vert, No EMI, H = 17mm
100 Base-T, LED Options - See Data, No EMI Fingers, TH, Vertical, UL94V-0, H = 17mm
501-2115

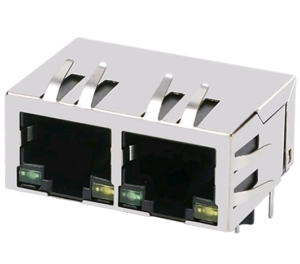

501-2115, MagJack 1X2, 100 Base-T, POE, 15 W, TH, 90°, EMI Fingers, 21.35mm
100 Base-T, 1X2, Tab-Down, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 21.35mm
501-2116

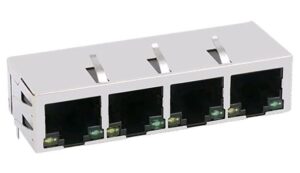

501-2116 MagJack 1X4, 100 Base-T, POE, 15 W, TH, 90°, EMI Fingers, 21.35mm
100 Base-T, 1X4, Tab-Down, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 21.35mm

GIGABIT MAGJACKS

501-2201
501-2201 MagJack PoE 15W, 1GB, Tab-Up Grn_Ora_Yell, EMI Fingers, 32.6mm
Gigabit, Tab-Up, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 32.6mm
501-2202

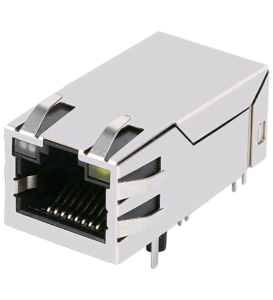

501-2202 1G MagJack PoE 15W, Alt Schematic, Tab-Up Grn_Ora_Yell, EMI, 32.6mm
Gigabit, Tab-Up, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 32.6mm
501-2203
501-2203 MagJack PoE 15W, 1GB, Tab-Down Grn_Yell, No EMI Fingers, 21.25mm
Gigabit, Tab-Down, LED Options - See Data, No EMI Fingers, TH, 90°, UL94V-0, L = 21.25mm
501-2211
501-2211 1G MagJack 2X2, PoE 15W, Grn_Yell, Grn_Yell, EMI, 38.3mm
Gigabit, 2X2 Port, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 38.3mm
501-2212

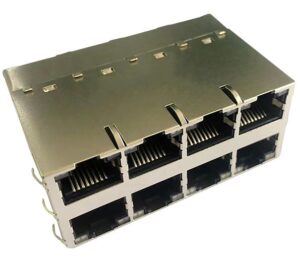

501-2212 1G MagJack PoE 15W, 2X4, Grn_Grn, EMI, 38.3mm
Gigabit, 2X4 Port, LED Options - See Data, EMI Fingers, TH, 90°, UL94V-0, L = 38.3mm

2.5G MAGJACKS

Please contact us for available products.

5G MAGJACKS

Please contact us for available products.

10G MAGJACKS

Please contact us for available products.

> Back to MagJacks Main Page. MPSI provides a range of PoE (15W) MagJacks, where types are not shown please contact us.
